Eddystone EC10 communication receiver restoration and PSU add-in

Recently I got vintage Eddystone EC10 MK1 communication receiver from friend of mine and it is completely dead when it comes to me. EC10 MK1 is one of Eddystone's very early solid state communications receivers and it use 10 PNP Germanium transistors. This receiver cover 550 kHz to 30 MHz and come up with BFO for CW and SSB receptions.

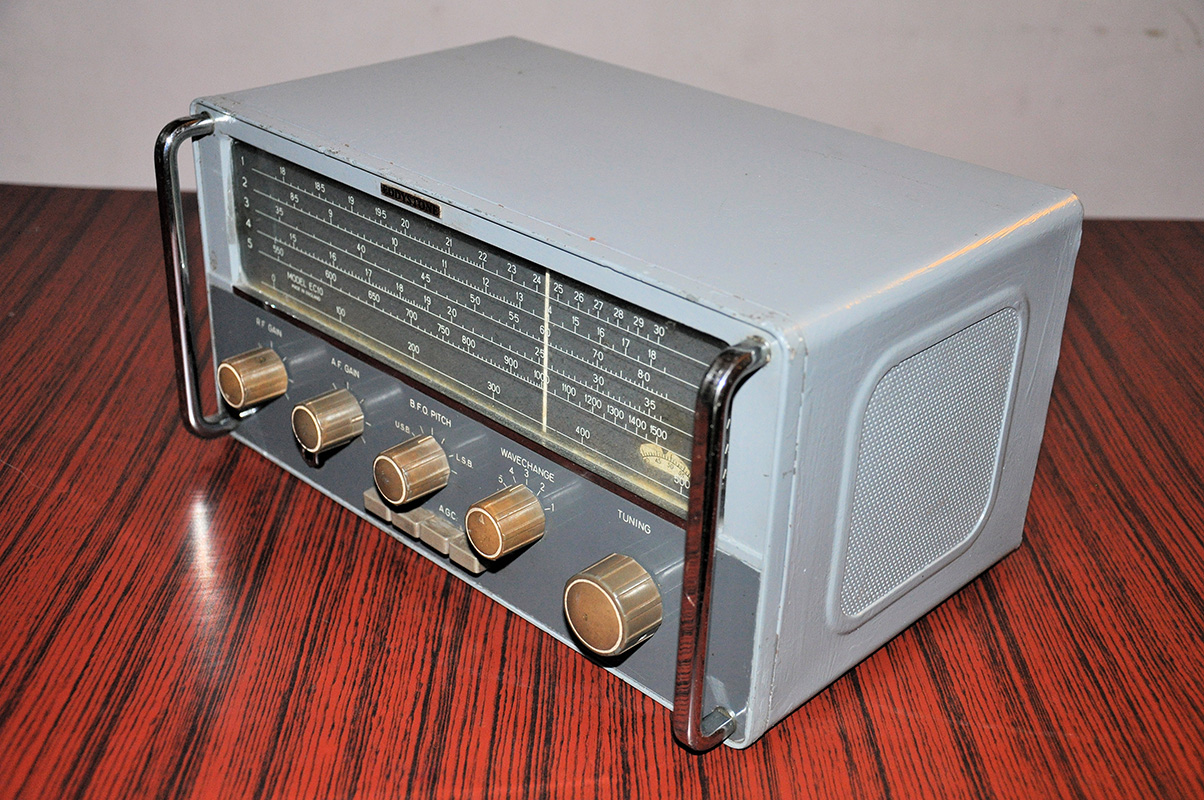

Restored EC10 MK1 HF communication receiver

The main problems which I noticed in my EC10 is corroded wires, components and PCB. I did restoration step-by-step and most of the steps are listed in my qsl.net page.

Other than repairing, this article covers details of power supply which I integrated into EC10 communication receiver. The schematics and photographs are available at the same article.

After repairing and above changes EC10 starts to work again and with some external antenna is performs quiet well. Most of the times I use this receiver to listen to 40m 4S7RS net on 7060kHz.
